Description

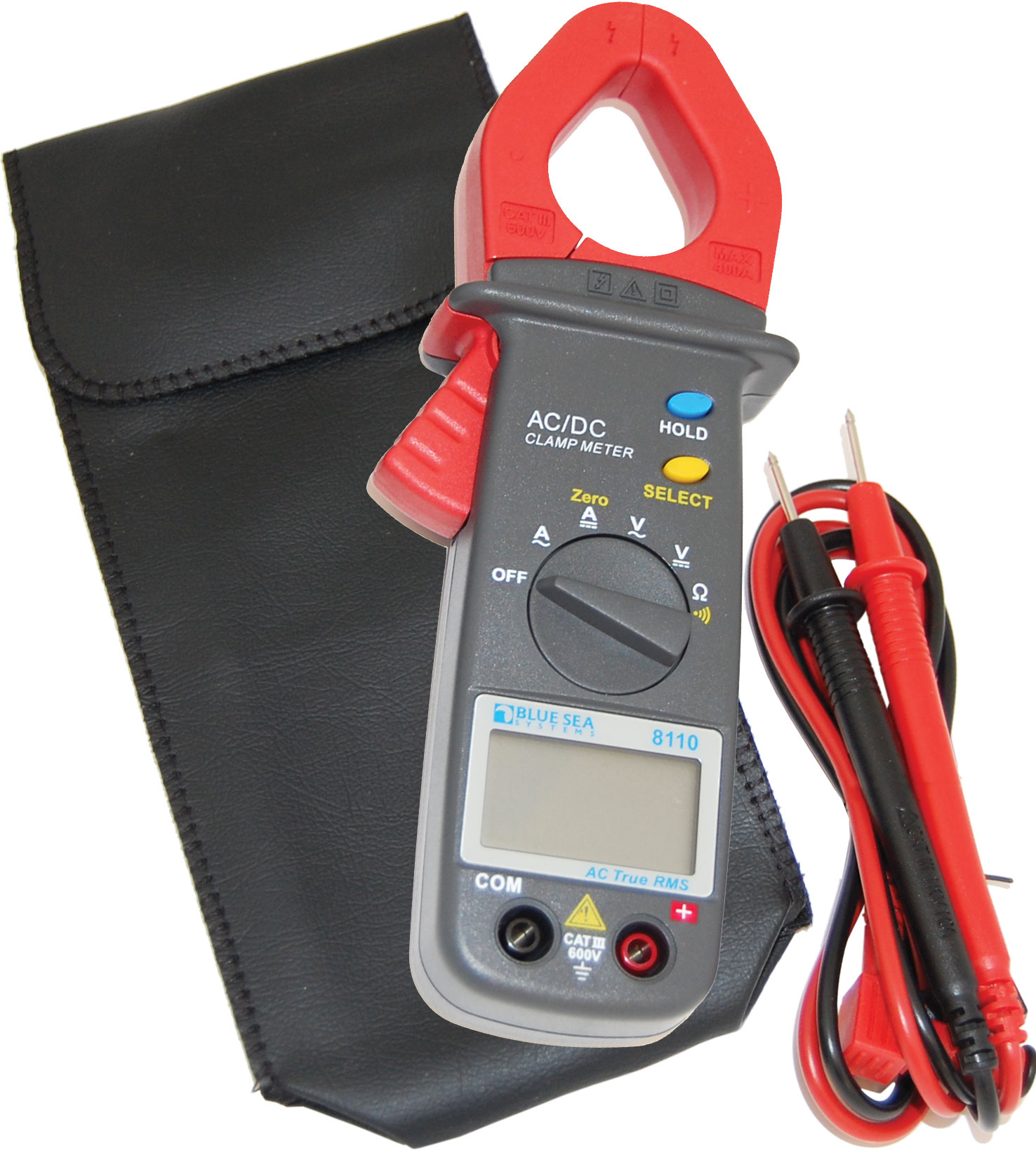

BLUE SEA SYSTEMS Mini Clamp Meter – 8110.
- Clamp allows measurement of AC and DC current in wires without disturbing the circuits or contacting live terminals
- Auto range simplifies operation: 0.01-400 Amps, 0.001-600 Volts
- Auto power-off selection – power turns off automatically after 10 minutes of non-use
- True RMS – required for accurate measurement of inverter output
- Large digital display makes reading measurements easy
- Data hold – press “HOLD” button during measurement to lock reading value
- Test leads included with meter
| Specifications | |
|---|---|
| Amperage | 0.01-400A AC 0.01-400A DC |
| Voltage | 0.001-600V AC 0.001-600V DC |
| Low Battery Indicator | Yes |
| Maximum Clamp Size | 30mm (1.18 in) |
| Measurement Resolution | 4300 Counts |
| Operating Elevation | up to 2000m above sea level |
| Operating Humidity | Below 80% RH (no condensation) |
| Range | Auto |
| Resistance/Continuity Alarm | 0.1-40MΩ |
| Sampling Rate | Approximately 2 times/second |
| Operating Temperature Range | 0-50C (32-122F) |
| Weight | 0.47lb (0.21 kg) |
