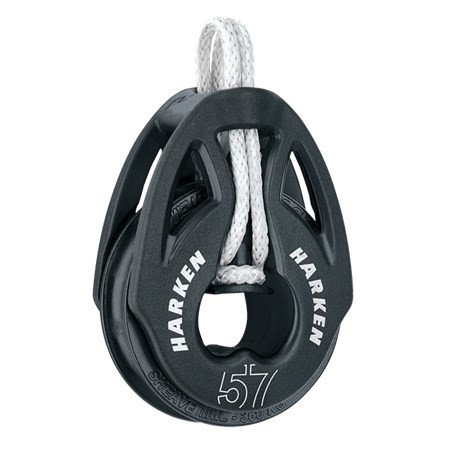

HARKEN 57mm T2™ Loop Soft-Attach Block – 2151
HARKEN 57mm T2™ Loop Soft-Attach Block – 2151 is a Harken Carbo-family block built for efficient line handling with a high strength-to-weight ratio and low-friction operation.
- High-strength composite soft-attach construction eliminates a conventional metal shackle.
- Free-running bearing geometry is designed for quick trim and controlled easing.
- Attachment line routes through the block head for a light, adaptable installation.
- Configuration is purpose-built around the listed sheave, attachment and becket/cam arrangement.
- UV-resistant marine materials are selected for dependable deck service.
The high-strength composite T2™ is the first block with no metal shackles or rivets. It is used for traveler controls, mainsheets and vangs, cascades, bridles, and other systems where small, lightweight blocks are called for.
For best results, confirm the Harken part number and system compatibility before installation, and operate the hardware within Harken’s published line-size and load limits.
Specifications
- Manufacturer: Harken
- Part Number: 2151
- Series / Family: T2
- Nominal Size: 57 mm
- Configuration: Soft-attach, Loop attachment
- Construction: Fiber-reinforced composite / Carbo family
- Sheave Ø (mm): 57 mm
- Sheave Ø (in): 2 1/4 in
- Length (mm): 79 mm
- Length (in): 3 1/16 in
- Weight (g): 59 g
- Weight (oz): 2 oz
- Maximum line Ø (mm): 11 mm
- Maximum line Ø (in): 7/16 in
- Maximum working load (kg): 359 kg
- Maximum working load (lb): 792 lb
- Breaking load (lb): 2380 lb
- Breaking load (kg): 1080 kg
- Includes: 2155 loop
