Description

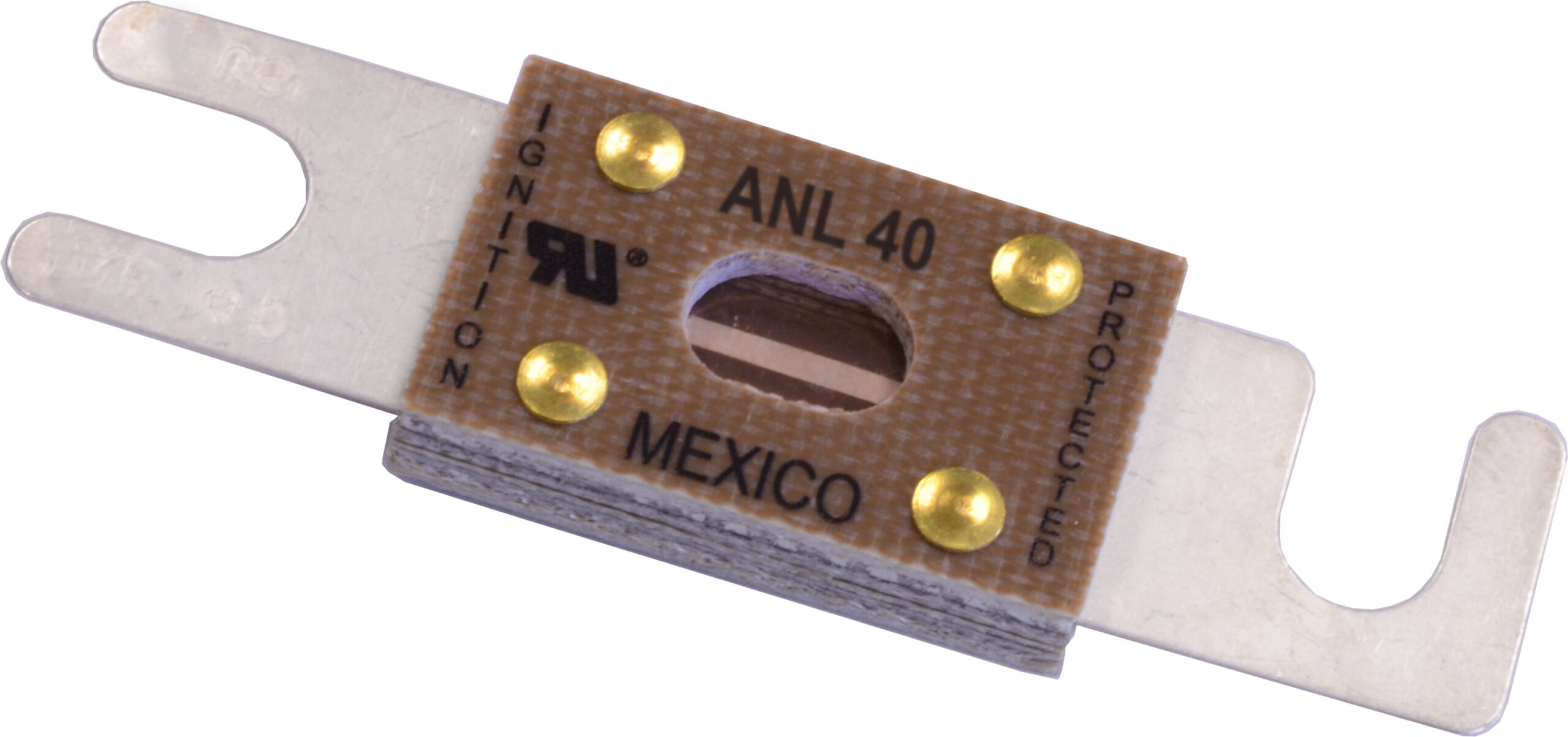

Blue Sea Systems Fuse ANL 40A – 5165
The Blue Sea Systems Fuse ANL 40A is designed for marine and mobile electrical circuit protection.
- Ignition protected (conforming to SAE J1171)- safe for installation aboard gasoline powered boats (35-500 Amp only)
- Silver-plated connector blades for corrosion resistance
- Visible indication of blown condition
- 6,000A Interrupt Capacity (AIC) satisfies ABYC requirements for main DC circuit protection on large battery banks
- For use with Blue Sea Systems’ ANL Fuse Blocks
For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.
Specifications
- Amperage: 40A
- Ignition Protected: Yes
- Maximum Voltage: 32V DC
- Interrupt Capacity: 6,000A @ 32V DC
- Weight: 0.05 lb (0.02 kg)
- Fuse Body Size: ANL fuse format; approx. 3.19 in L × 0.87 in W × 0.34 in H (81 mm × 22 mm × 8.6 mm)
- Manufacturer: Blue Sea Systems
- Part Number: 5165
