Description
Blue Sea Systems Marine Grade Short Stop Circuit Breakers – 10A – 7151
Use a Circuit Breaker instead of a Fuse.
- Corrosion resistant materials to withstand harsh environments
- IP64 water resistant boot protects against dust and splashing water
- Push-to-reset operation only disconnects when tripped
- Stainless steel lock nuts for secure connections

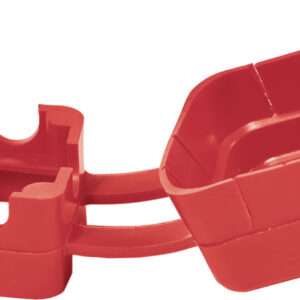

- Red insulating boot included (retail product only)
For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.
Specifications
- Amperage: 10A DC
- Maximum Voltage: 28V DC
- Circuit Breaker Type: Thermal trip, manual reset
- Terminal Stud: #10-32
- Terminal Stud Torque: 20 in-lb (2.26 N·m)
- Interrupt Capacity: 2,500A @ 28V DC
- Minimum Operating Temperature: -10°C
- Maximum Operating Temperature: 60°C
- Weight: 0.06 lb (0.03 kg)
- Product Envelope: Approx. 1.75 in L × 1.13 in W × 0.75 in H (44.5 mm × 28.6 mm × 19.1 mm); verify mounting from Blue Sea drawing for final layout
- Manufacturer: Blue Sea Systems
- Part Number: 7151
