Blue Sea Systems ST CLB Circuit Breaker Block – 6 Position with Negative Bus – 5052

Description

Blue Sea Systems ST CLB Circuit Breaker Block – 6 Position with Negative Bus – 5052

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse. Features.

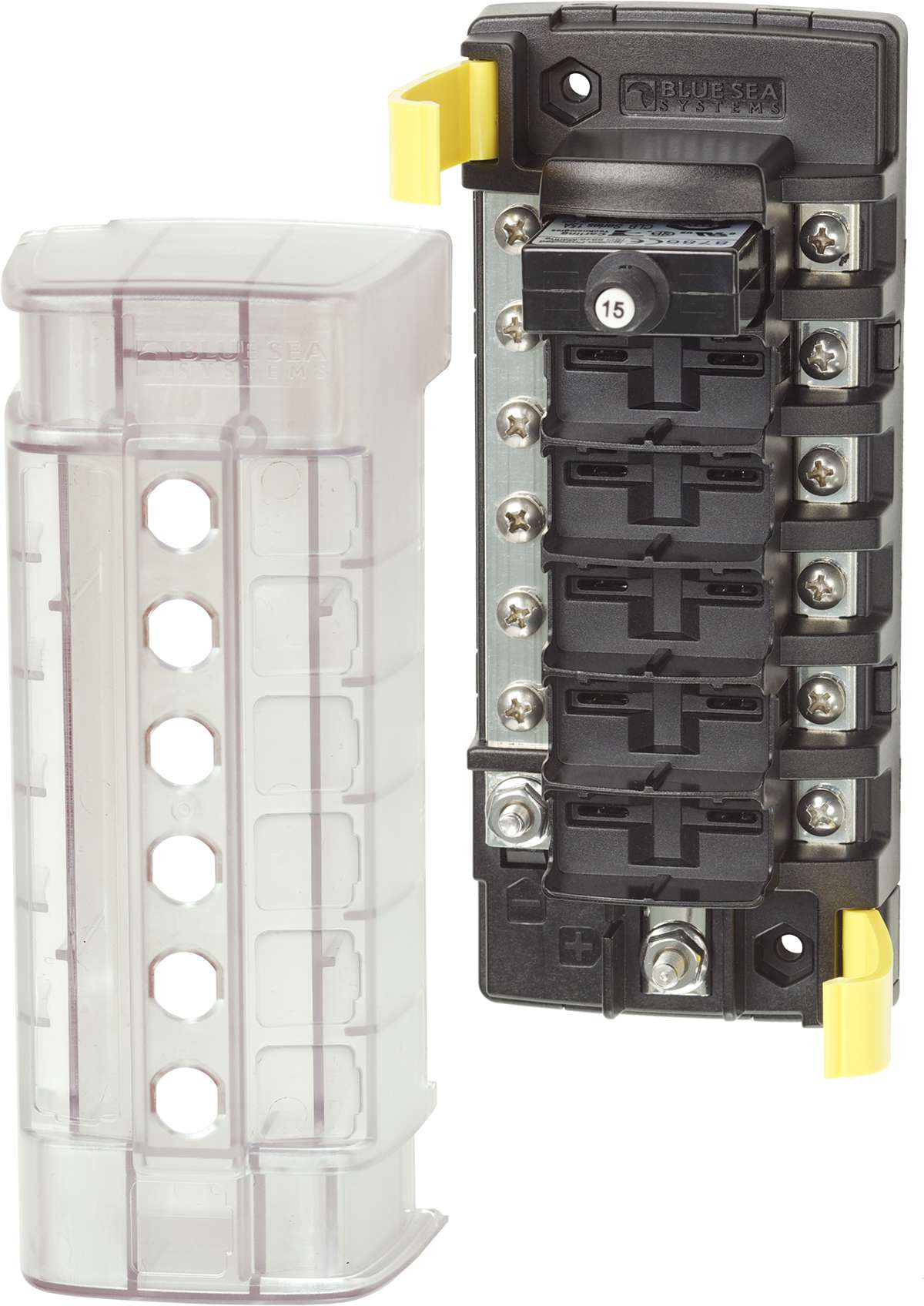

• Quick connect clips allow circuit breakers to snap easily into place
• Tin-plated copper busses and screw terminals

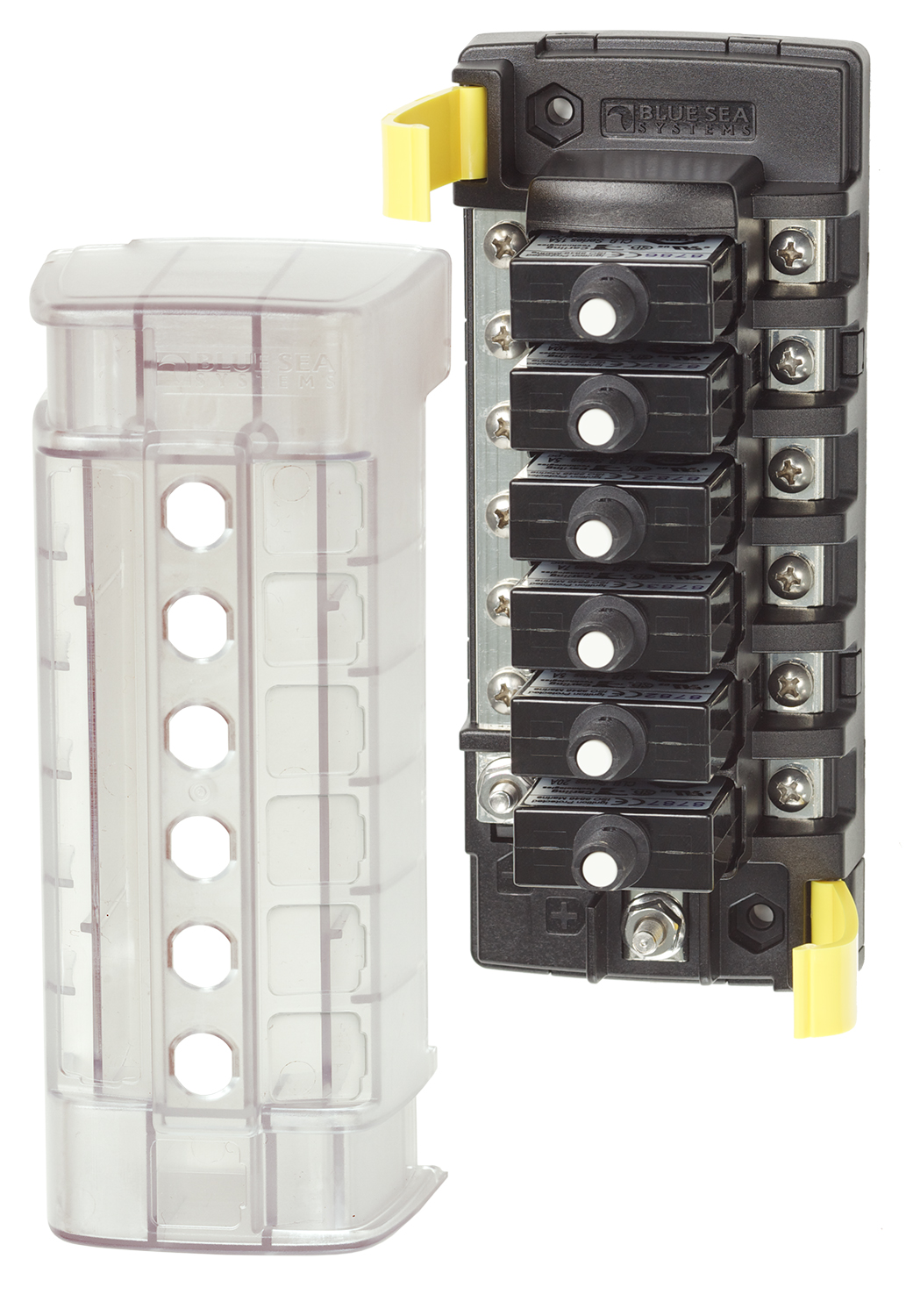

• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
• Easy to open clip on cover
• Breakouts allow wire access in two directions

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Circuits: 6
• Maximum Amperage: 100A (per block) 32A (per circuit)
• Maximum Voltage: 32V DC
• Mounting: #8 Screw (M4) or #8 Nut
• Negative Bus: #10-32 Stud
• Positive Bus: #10-32 Stud
• Source: Common Source
• Minimum Operating Temperature: -10°C
• Maximum Operating Temperature: 60°C
• Mounting Centers: 5.63 in (143 mm)
• Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
• Height: 6.69 in (169.93 mm)
• Weight: 0.75 lb (0.34 kg)
• Manufacturer: Blue Sea Systems
• Part Number: 5052
