BLUE SEA SYSTEMS m-Series 3-Position Battery Selector Switch – Red – 6008

Description

BLUE SEA SYSTEMS m-Series 3-Position Battery Selector Switch – Red – 6008

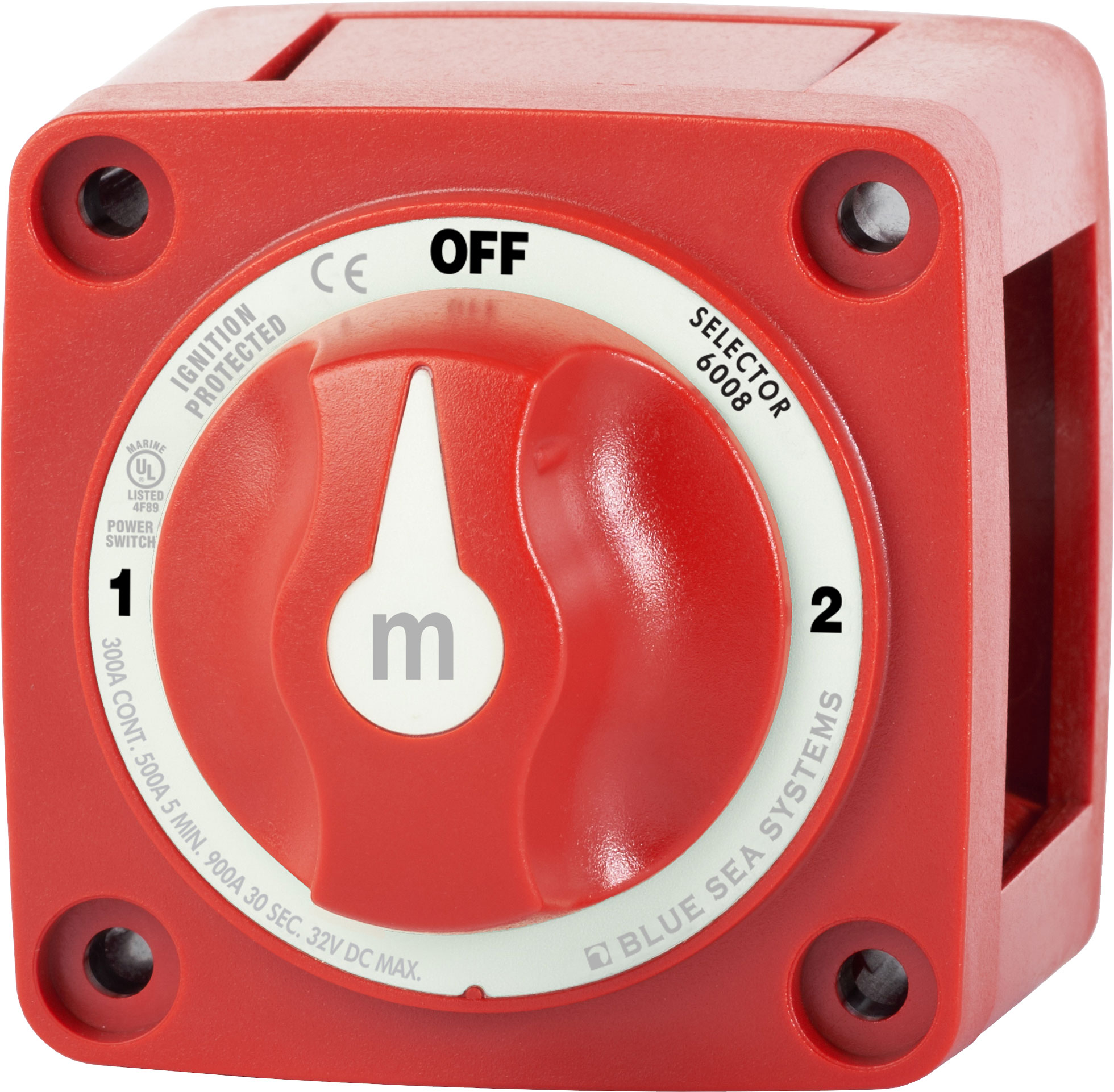

The Blue Sea Systems 6008 m-Series Battery Selector Switch is a compact, high-capacity marine battery switch designed to select between Battery 1, Battery 2, or OFF in a DC electrical system. Built for marine environments, it features ignition protection for safe installation aboard gasoline-powered boats and a case design that supports surface or rear-panel mounting.

• 3-position selector switch for Battery 1, Battery 2, and OFF operation
• 300A continuous rating for outboards and small gasoline or diesel engines
• Ignition protected for safe use aboard gasoline-powered boats
• Surface or rear-panel mounting design for flexible installation
• Tinned copper studs provide strong conductivity and corrosion resistance

This m-Series switch is a dependable choice for marine battery management where compact size, high current capacity, and reliable switching are required. It is suitable for 12V and 24V DC systems up to 32V DC.

Specifications

• Manufacturer: Blue Sea Systems
• Part Number: 6008
• UPC: 632085060084
• Product Type: Battery Selector Switch
• Series: m-Series
• Switch Type: Selector, 3 Position
• Switch Positions: Battery 1 / Battery 2 / OFF
• Colour: Red
• Battery Combine: No
• Alternator Field Disconnect: No
• Maximum Voltage: 32V DC
• Continuous Rating: 300A
• Intermittent Rating: 500A for 5 minutes
• Starting Rating: 900A for 30 seconds
• Switching Rating: 25A
• Battery Inputs: 2
• Terminal Stud Size: 3/8″-16, M10
• Stud Material: Tinned Copper
• Terminal Stud Torque: 120 in-lb / 13.56 Nm
• Mounting Holes Accept: #10 Screws
• Cable Clearance: 1.12″ / 28.45 mm for 4/0 AWG cables
• Recommended Cable Size to Meet Ratings: 4/0 AWG
• Ingress Protection: IP66
• Weight: 0.77 lb / 0.35 kg
