BLUE WAVE S/S Stemball Cup 1/8-5/32 Wire – 626204

Description

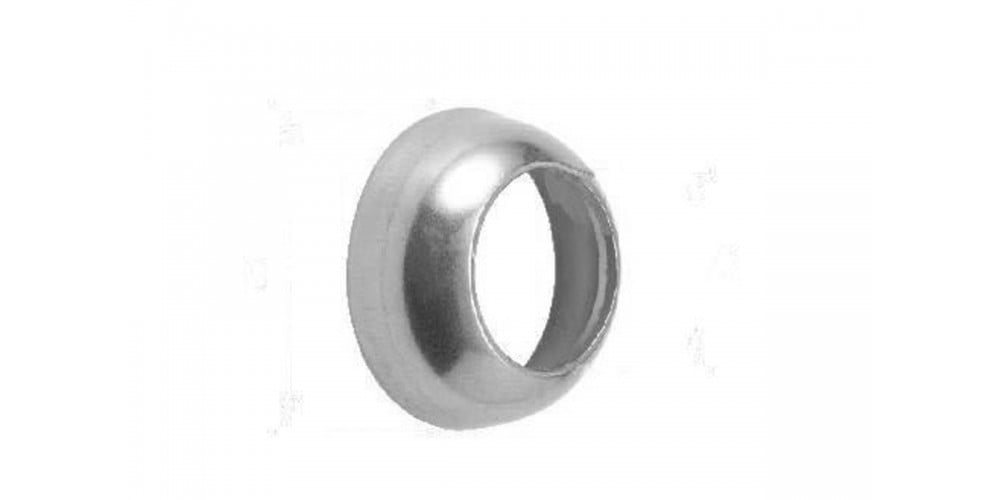

The Blue Wave 626204 Stemball Cup is a precision-engineered fitting designed to seat a stemball swage terminal securely within a structure such as a mast, spar, or custom rigging fitting. Compatible with 1/8″ to 5/32″ wire terminals, this cup is made from AISI 316 marine-grade stainless steel, offering excellent strength and corrosion resistance in even the harshest marine environments.

Stemball cups are typically used in standing rigging setups, allowing for a compact, flush-mount termination where space is limited or aesthetics are important.

Key Features

• Accepts stemball terminals for 1/8″ to 5/32″ wire

• Marine-grade AISI 316 stainless steel for superior corrosion resistance

• Designed for flush, secure installation of stemball terminals in masts or spars

• Commonly used in sailboat standing rigging and architectural cable systems

• Provides a neat, low-profile, and mechanically strong termination point

Specifications

• Part Number: 626204

• Wire Size Compatibility: 1/8″ (3.2 mm) to 5/32″ (4 mm)

• Material: AISI 316 stainless steel

• Type: Stemball cup (receptacle for stemball terminals)

• Installation: Press or epoxy fit depending on application

• Application: Sailboat rigging, custom fittings, balustrade systems

• Corrosion Resistance: Excellent – suitable for saltwater exposure
