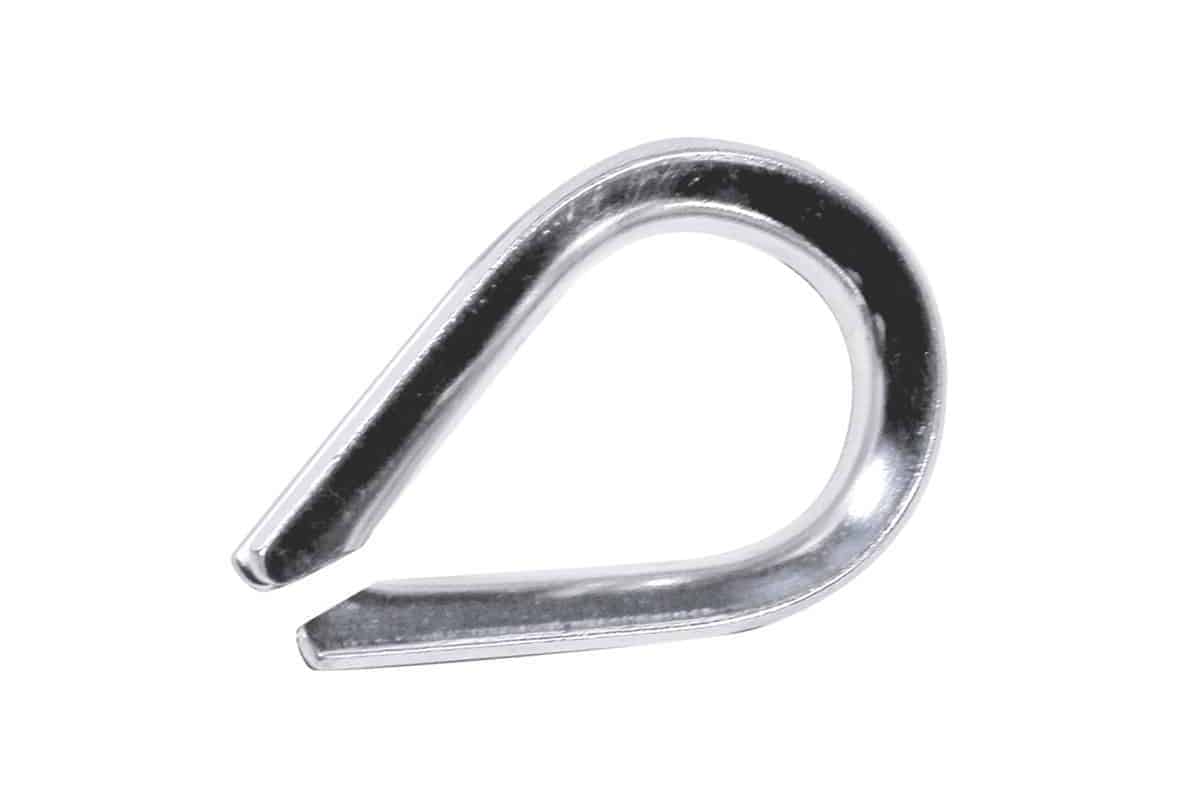

BLUE WAVE S/S 316 Thimble 3/8 Wire – 110009

Description

The Blue Wave 110009 thimble is designed to protect 3/8″ wire rope from wear, crushing, and deformation at termination points. Made from AISI 316 marine-grade stainless steel, it offers superior resistance to corrosion in harsh marine and industrial environments.

This thimble ensures the wire rope maintains its loop shape under load, reducing stress and increasing the longevity of both the cable and surrounding hardware. Ideal for a wide range of rigging applications, including sailboat rigging, architectural systems, and lifting assemblies.

Key Features

• Suitable for 3/8″ (9.5 mm) wire rope

• AISI 316 stainless steel for maximum corrosion resistance

• Protects cable from abrasion and deformation at load-bearing points

• Smooth, precision-formed groove maintains loop integrity

• Ideal for marine rigging, mooring lines, slings, and tension systems

Specifications

• Part Number: 110009

• Wire Size: 3/8″ (9.5 mm)

• Material: AISI 316 stainless steel

• Type: Open thimble

• Finish: Polished stainless steel

• Corrosion Resistance: Excellent – ideal for saltwater and outdoor exposure

• Applications: Sailboat standing rigging, lifelines, hoisting gear, structural tension cables

• Compliance: Typically meets marine and industrial rigging standards (verify with Blue Wave for load ratings)
