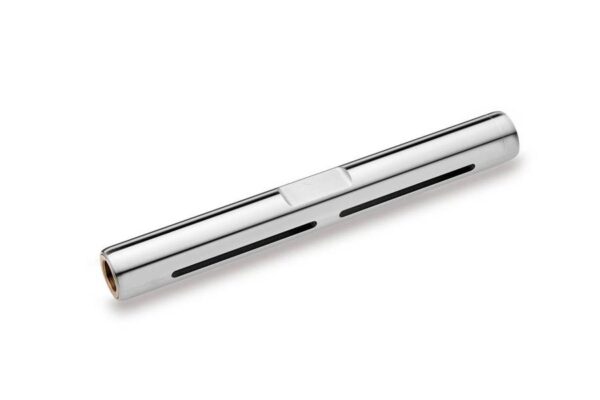

BLUE WAVE Apex Machined S/S Body 3/8″ – 012410A

Description

A precision-engineered open-body turnbuckle component crafted from high-quality AISI 316L stainless steel with integrated bronze-threaded inserts. Designed for strength, durability, and smooth adjustability under load, ideal for marine, architectural, and industrial rigging systems.

Specifications

• Model Number: 012410A

• Thread Size: 3/8″ UNF

• Body Material: Polished 316L stainless steel

• Thread Inserts: Bronze (press-fitted, anti-galling)

• Outer Diameter (D): 18 mm

• Overall Length (L1): 135 mm

• Thread Engagement (L2): 19 mm

• End Length (L3): 5.5 mm

• Spanner Flat Width (KW): 15 mm

• Minimum Breaking Load: 3,400 kg

• Weight per Unit: 0.141 kg (141 g) eiva-safex.no+9bluewave.dk+9falsecreekfuels.com+9bluemarinestore.com+2proboat.co.uk+2bluewaveusa.com+2bluewaveusa.com+3bluemarinestore.com+3bluemarinestore.com+3

Key Features

• Open-Body Design: Simplifies visual inspection and enhances alignment accessibility

• Bronze Inserts: Eliminate galling, ensuring smooth, consistent thread motion under load

• Durable and Corrosion-Resistant: Engineered from marine-grade stainless for reliable long-term performance

• Precision-Machined: Maintains tight manufacturing tolerances for stability and safety

• Spanner Flats: Built-in flats support secure tool engagement without damaging the finish
