Description

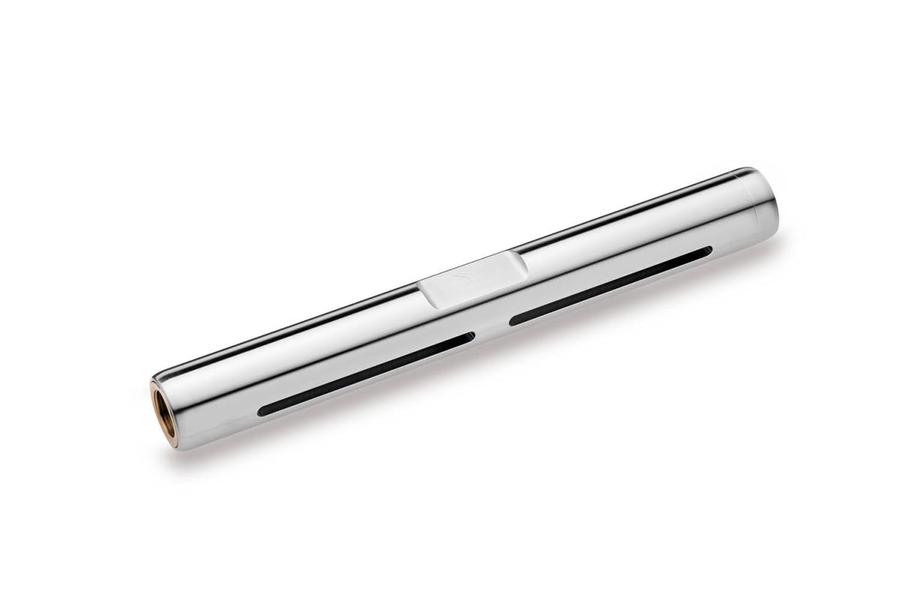

A CNC-machined, open-body turnbuckle central section designed for demanding rigging applications. Crafted from marine-grade stainless with bronze-threaded inserts to ensure durability, corrosion resistance, and smooth adjustability under high load.
Specifications
-
Model Number: 012408A
-
Thread Size: 5/16″ UNF (≈15.5 mm diameter)  bluewave.dk+9bluewave.dk+9falsecreekfuels.com+9proboat.co.uk+3proboat.co.uk+3bluemarinestore.com+3bluewave.dk
-
Outer Diameter (D): 15.5 mm
-
Overall Length (L1): 120 mm
-
Thread Engagement (L2): 18 mm
-
End Length (L3): 4.5 mm
-
Spanner Flat Width (KW): 13 mm
-
Minimum Breaking Load: 2,200 kg
-
Weight: 0.087 kg each (8.7 kg per 100 pcs)  bluemarinestore.com+10bluewave.dk+10bluemarinestore.com+10bluemarinestore.com
Key Features
-
Open-Body Design – Provides clear visual access and aids alignment with toggles or pins
-
Bronze Insert Threads – Press-fitted inside stainless body to prevent thread galling
-
316L Stainless Steel – Offers excellent resistance to corrosion in marine and outdoor environments
-
Spanner Flats – Wide, machined flats allow non-marring wrench adjustment
