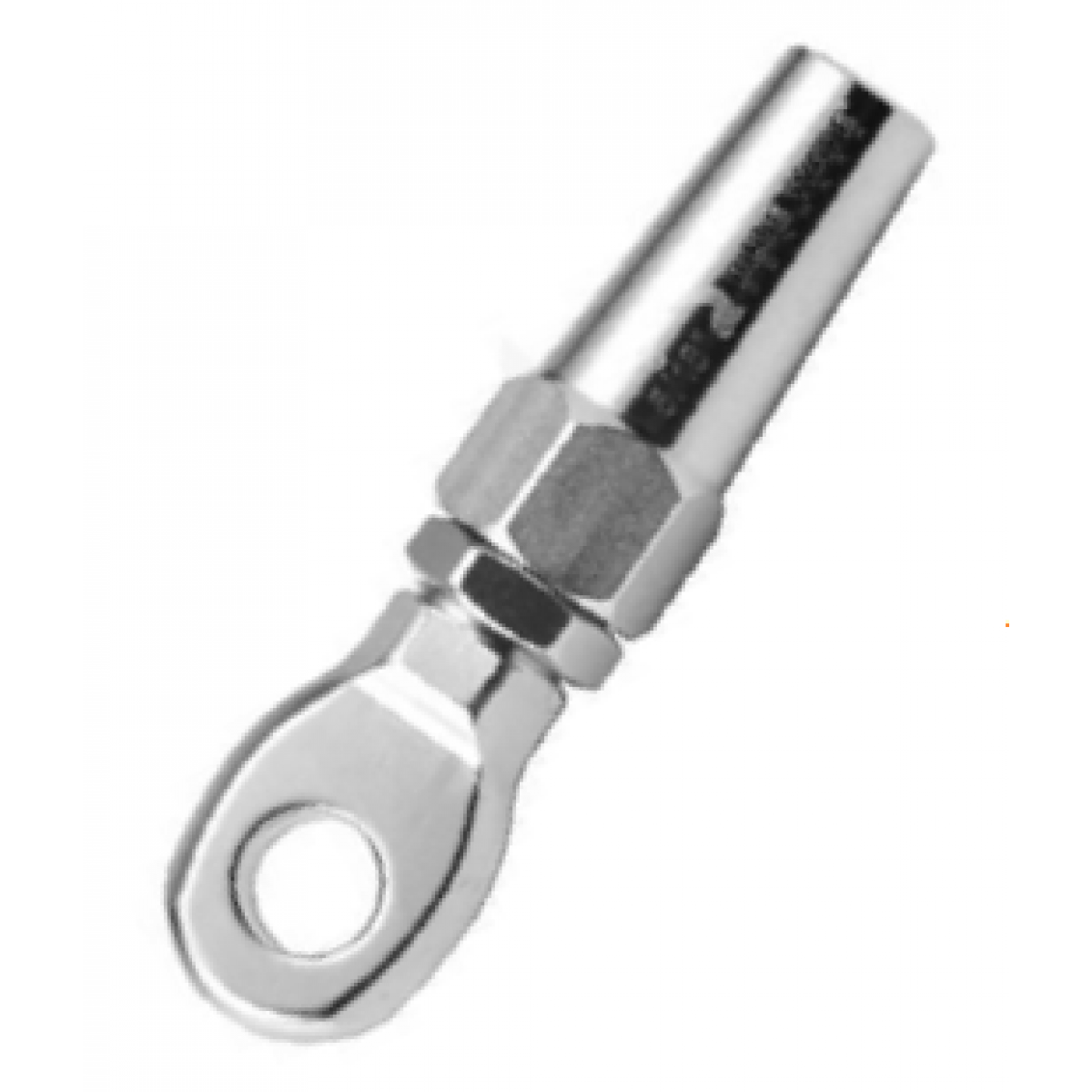

BLUE WAVE 1X19 Swageless 3/4Eye 3/8Wire – Sc821995

Description

A robust, corrosion-resistant marine-grade terminal designed for 3/8″ diameter 1×19 stainless steel wire rope. Ideal for applications requiring secure, reusable, and tool-free wire terminations.

Specifications

• Model Number: SC821995

• Wire Construction: 1×19 stainless steel wire

• Wire Diameter (Ø): 3/8″ (9.5 mm)

• Eye Diameter (Ø): 3/4″ (19.5 mm)

• Pin Diameter (Ø): 1/2″ (12.7 mm)

• Break Load (MBL): 11,000 kg

• Length (L1): 133 mm

• Length (L2): 64 mm

• Width (L3): 21 mm

• Width (L4): 53 mm

• Weight per 100 Pack: 46.7 kg

• Material: Polished AISI 316 stainless steel

• Finish: Brushed

• Certification: Lloyd’s Approveden.wikipedia.orgsoutherncross.no+4bluemarinestore.com+4bluewave.dk+4bluewaveusa.com+1bluewave.dk+1bluewave.dk+4bluemarinestore.com+4bluemarinestore.com+4bluewave.dk

Key Features

• Swageless Design: Eliminates the need for swaging tools, allowing quick installation and disassembly.

• Reusable: Components can be taken apart and reused, making them ideal for emergency repairs.

• Corrosion Resistant: Manufactured from AISI 316 stainless steel, offering excellent resistance to marine environments.

• Versatility: Suitable for various wire constructions, including 1×19, 7×19, 7×7, and Dyform/Compacted strand wires.

• Certified Safety: Meets international standards for safety and reliability.

Applications

The SC821995 terminal is commonly used in marine rigging systems, including

• Shrouds and stays

• Backstays and forestays

• Booms and spreaders

• Tensioning systems requiring quick and secure wire terminations
