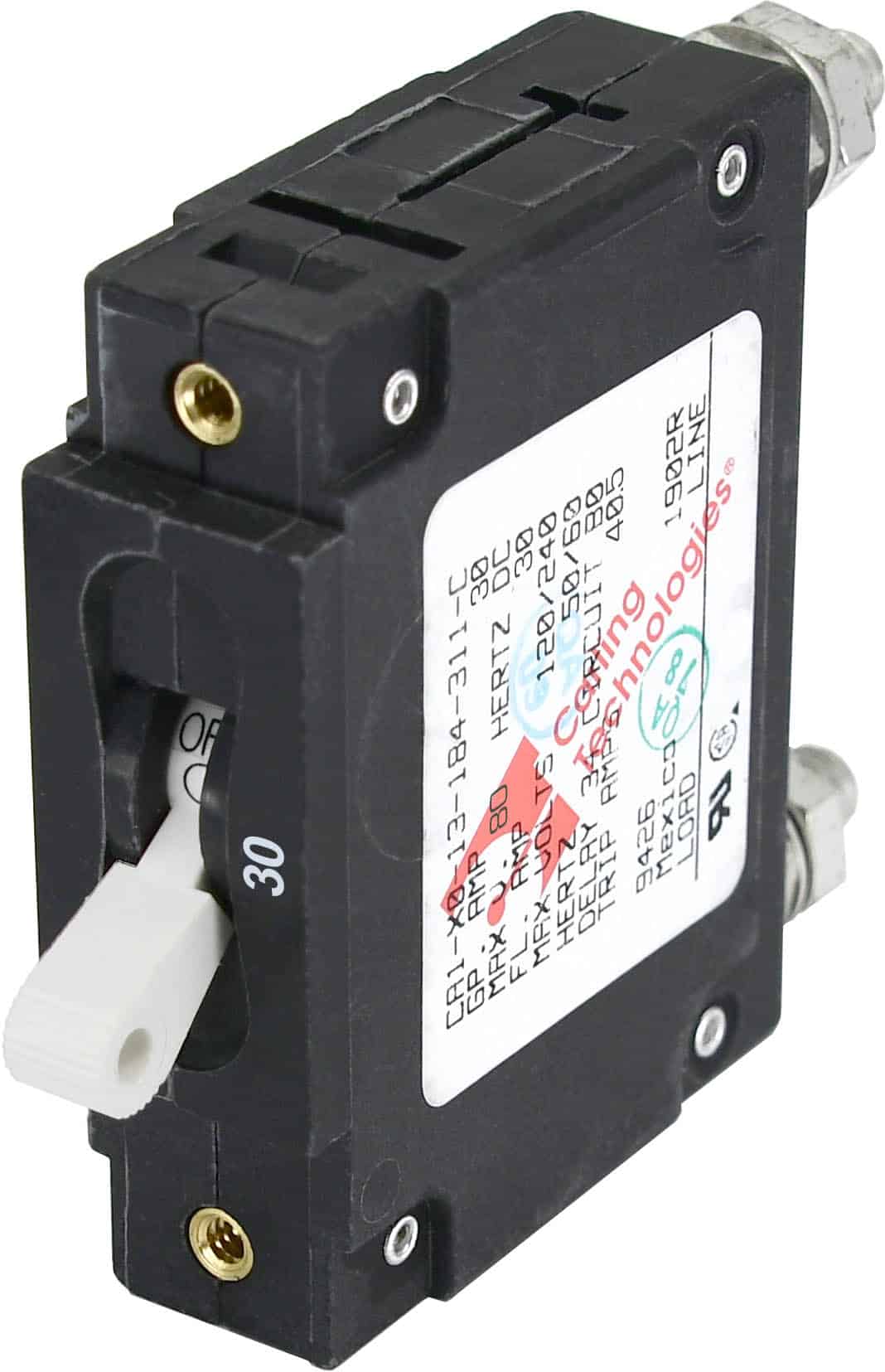

Blue Sea Systems C-Series White Toggle Circuit Breaker – Single Pole 30A – 7355

Description

Blue Sea Systems C-Series White Toggle Circuit Breaker – Single Pole 30A – 7355

The Blue Sea Systems C-Series White Toggle Circuit Breaker – Single Pole 30A is designed for marine and mobile electrical circuit protection.

• Provides overcurrent protection for inverters, bow thrusters, windlasses, and other high-current circuits
• Combines switching and circuit protection in one device
• Trip-free design cannot be held closed after a trip
• Provides resettable circuit protection for properly engineered marine electrical systems
• Helps protect branch circuits while allowing convenient service reset access

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Amperage: 30A AC / 30A DC
• Color: White
• Actuator Style: Toggle
• Poles: 1
• Maximum Voltage: 240V AC / 80V DC
• Circuit Breaker Type: Magnetic hydraulic – trip-free
• Terminal Stud: 1/4-20 tin-plated brass
• Terminal Stud Torque: 35 in-lb (3.95 N·m)
• Switching Cycles: 10,000
• Weight: 0.25 lb (0.11 kg)
• Breaker Body Envelope: 2.50 in D × 0.75 in W × 2.50 in H (63.5 mm × 19.1 mm × 63.5 mm)
• Manufacturer: Blue Sea Systems
• Part Number: 7355
