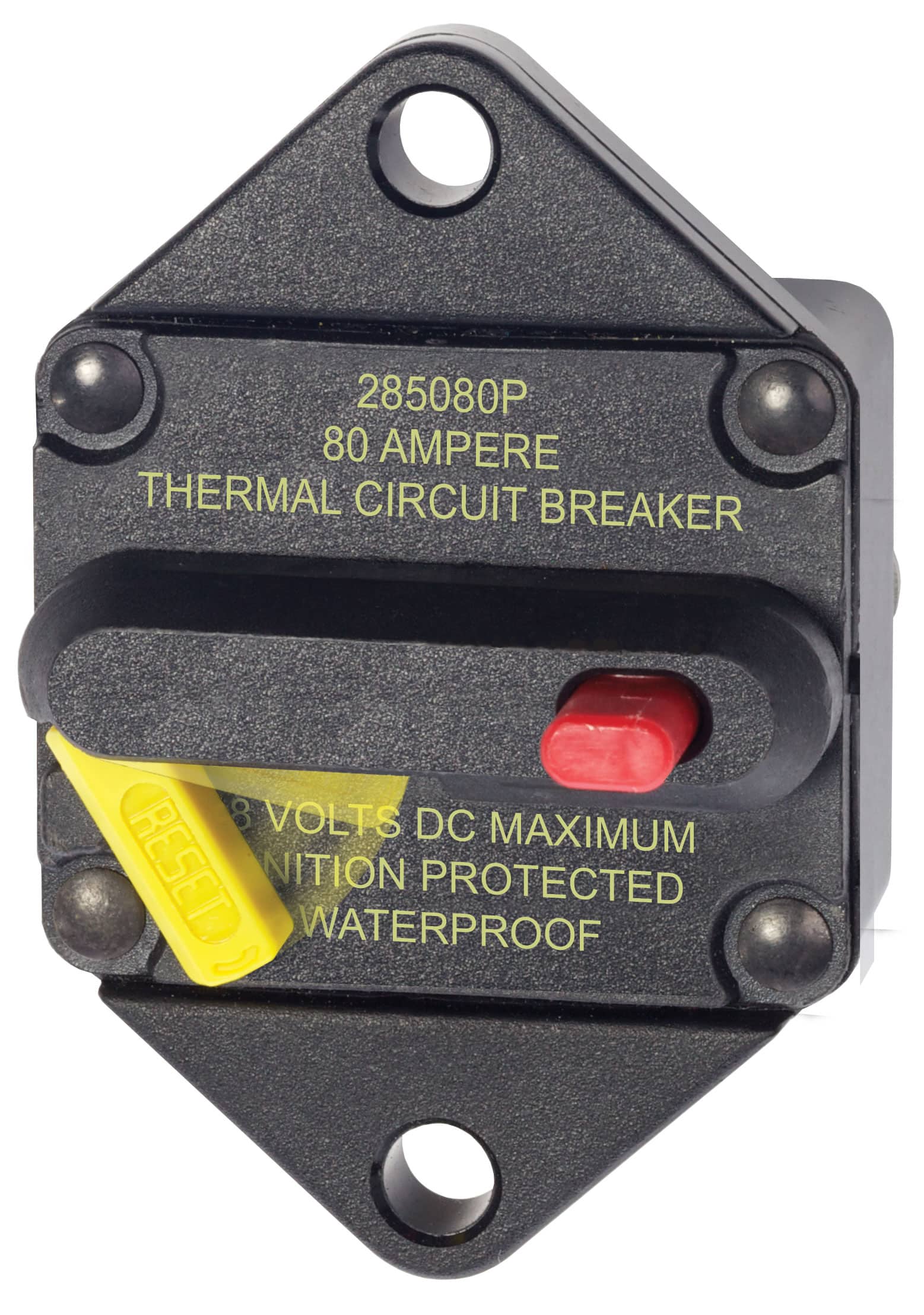

Blue Sea Systems Surface Mount Circuit Breaker – 80A – 7086

Description

Blue Sea Systems Surface Mount Circuit Breaker – 80A – 7086

The Blue Sea Systems Surface Mount Circuit Breaker – 80A is built to endure harsh environments both on land and at sea. The resettable manual trip lever allows for safe and convenient shutdowns during maintenance or emergencies. Its compact, bolt-on format is ideal for surface mounting close to the battery or load. Let me know if you’d like a short marketing version or to group this with other amperage options (like 50A, 100A, etc. ).

• Rated for 80A continuous current at 12–48V DC
• Combines switching and circuit protection in one unit
• Manual trip lever for safe, easy resets and disconnects
• Ignition protected – safe for installation in engine compartments
• Waterproof and corrosion-resistant – built for harsh marine conditions

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Amperage Rating: 80A
• Voltage Rating: 12–48V DC
• Interrupt Capacity: 5,000A @ 30V DC
• Type: Surface Mount, Single Pole
• Function: Switchable circuit breaker with manual trip
• Mounting Style: Surface mount with two-hole bolt pattern
• Stud Size: 1/4″-28 threaded studs
• Terminal Type: Stainless steel terminals with protective boots
• Ignition Protected: Yes (SAE J1171 compliant)
• Water Resistance: IP66 – waterproof when mounted
• Trip Type: Thermal, trip-free
• Dimensions: 2.75″ H × 2.00″ W × 1.37″ D
• Manufacturer: Blue Sea Systems
• Part Number: 7086
