Blue Sea Systems Contura II Switch SPST Black – OFF-(ON) – 7930

Description

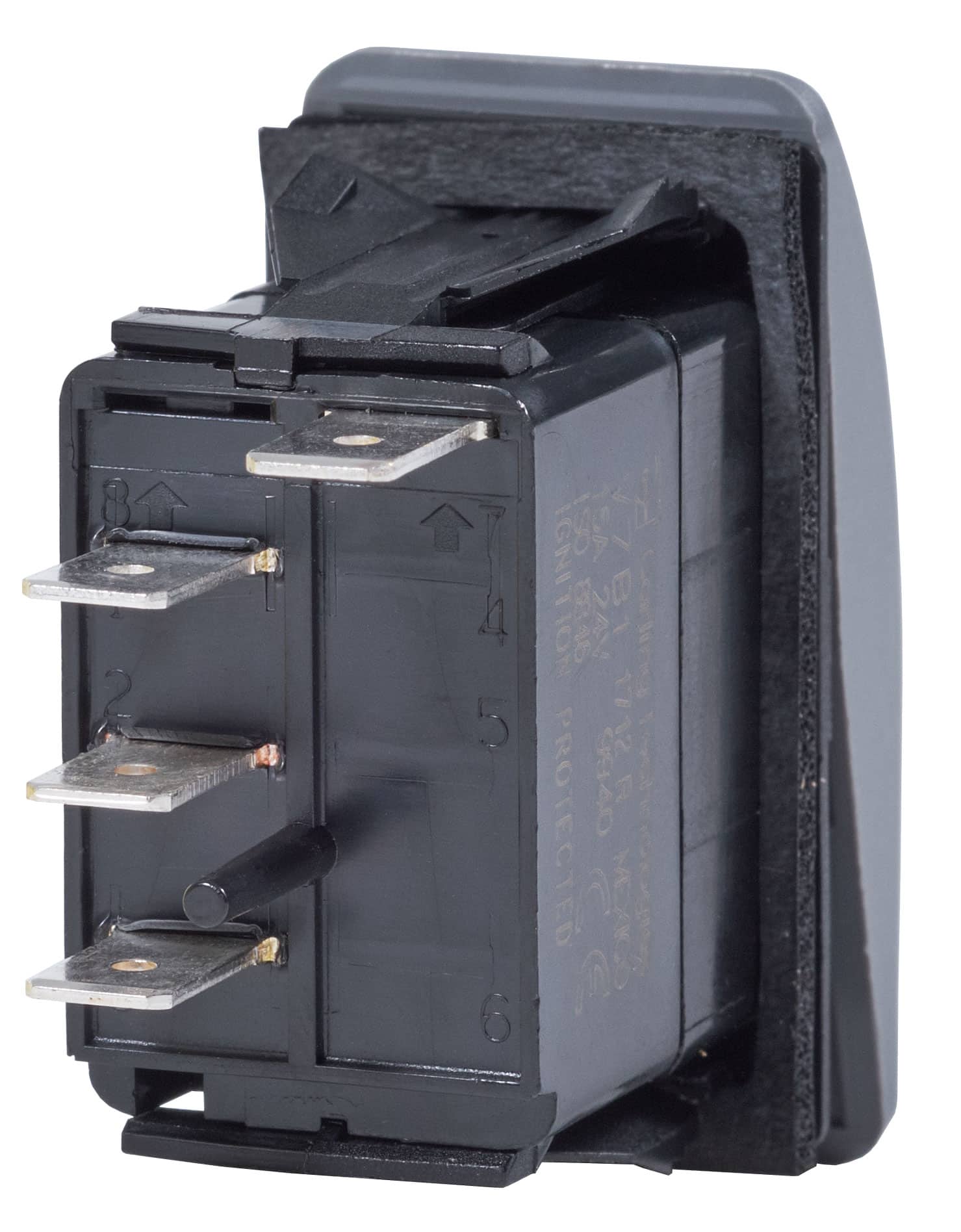

Blue Sea Systems Contura II Switch SPST Black – OFF-(ON) – 7930

The Blue Sea Systems Contura II Switch SPST Black – OFF-(ON) is a momentary single-pole, single-throw switch designed for Blue Sea Systems Contura water-resistant and switch-mounting panels. It is suited to momentary loads such as horns or windshield wipers.

• Momentary OFF-(ON) switching action
• SPST pole/throw configuration
• Vibration, shock, thermoshock, moisture, and salt-spray resistant
• Mounts in Blue Sea Systems Contura Water Resistant Panels and Contura Switch Mounting Panels
• Internal and external gasket panel seal supports demanding marine installations

For best results, confirm electrical ratings, conductor sizes, mounting requirements, and compatibility with the rest of the system before installation.

Specifications

• Action: OFF-(ON)
• Pole / Throw: SPST
• Actuator Color: Black – Contura II
• Common Applications: Horn or windshield wipers
• Maximum Amperage: 20A @ 12V / 15A @ 24V
• Minimum Operating Temperature: -40°C
• Maximum Operating Temperature: 85°C
• Embedded LEDs: 0
• Seals: Internal and external gasket panel seal
• Weight: 0.09 lb (0.04 kg)
• Cutout Size: Standard Contura switch cutout: approx. 1.45 in H × 0.83 in W (36.8 mm × 21.1 mm)
• Switch Body Envelope: Approx. 2.10 in D × 1.40 in H × 0.86 in W (53.3 mm × 35.6 mm × 21.8 mm)
• Product Dimensions: 5.33 cm L × 3.56 cm W × 2.18 cm H
• Manufacturer: Blue Sea Systems
• Part Number: 7930
