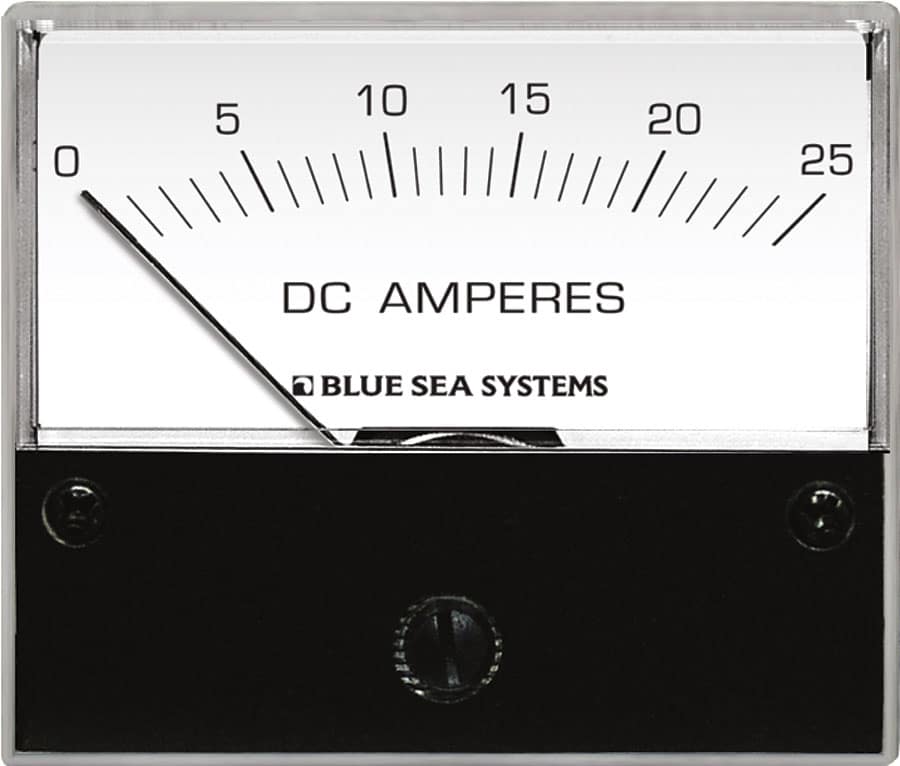

BLUE SEA SYSTEMS Analog Ammeter+Shunt 0-25A DC – 8005

Description

The Blue Sea Systems 8005 is a compact and reliable analog DC ammeter designed to measure currents up to 25 amps in 12V or 24V DC electrical systems. Ideal for small battery banks, auxiliary loads, and sensitive circuits, this meter provides a clear, real-time visual display of current flow to help you monitor electrical performance and prevent overloads.

Equipped with an external 25A/50mV shunt, the 8005 ensures accurate current measurement without requiring heavy gauge wiring through the meter, promoting safer and easier installations.

Key Features:

• Measures DC Current from 0 to 25 Amps: Perfect for monitoring smaller loads and battery circuits.

• Includes External 25A/50mV Shunt: Enables precise and safe current sensing.

• Analog Needle Display: Easy-to-read, real-time current indication.

• Flush-Mount Panel Design: Fits standard cutouts for a clean, professional look.

• Marine-Grade Build Quality: Resistant to corrosion and suitable for harsh environments.

• Low Power Draw: Passive design does not consume current from the monitored circuit.

Specifications:

• Manufacturer: Blue Sea Systems

• Model Number: 8005

• Type: Analog Ammeter with External Shunt

• Current Range: 0–25 Amps DC

• Accuracy: ±2.5% full scale

• Shunt Rating: 25A / 50mV (included)

• System Voltage: Compatible with 12V and 24V DC systems

• Panel Material: Anodized aluminum with matte finish

• Display: Analog needle gauge with white scale and black markings

• Mounting: Flush-mount

• Cutout Dimensions: 2.00 in x 3.25 in (50.8 mm x 82.6 mm)

• Overall Dimensions:

  • Height: 3.75 in (95.3 mm)

  • Width: 2.50 in (63.5 mm)

• Connection: Low-current signal leads connect to shunt, avoiding heavy current flow through meter

• Environmental: Corrosion-resistant, marine and RV suitable

• Compliance: CE marked

Applications:

• Monitoring small battery banks and auxiliary loads

• Tracking current draw on sensitive circuits

• Electrical system diagnostics for boats, RVs, and off-grid setups

• Preventing overloads and managing battery health

The Blue Sea Systems 8005 Analog Ammeter provides a precise, easy-to-read current monitoring solution for small DC circuits. With its included external shunt and durable design, it offers dependable performance in demanding marine and mobile environments.
