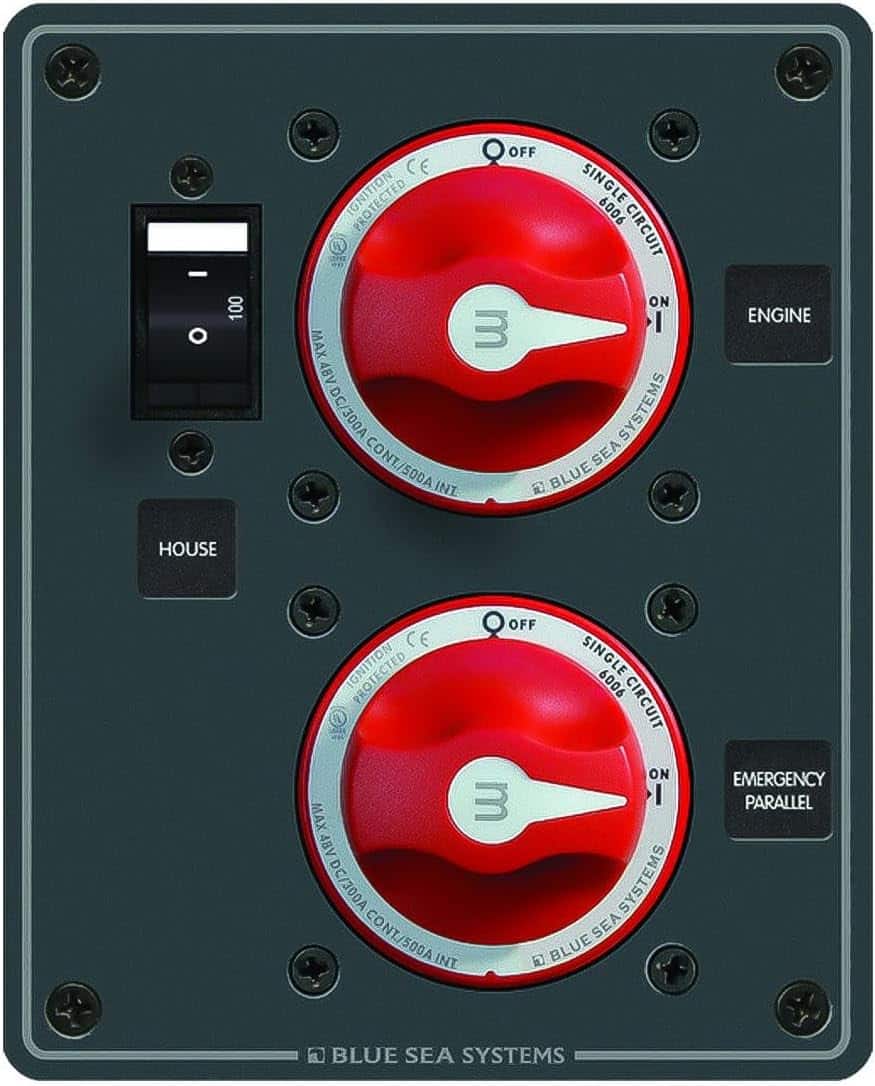

BLUE SEA SYSTEMS 2 Battery Panel 100A 2 M-Switch – 8080

Description

The Blue Sea Systems 8080 Battery Management Panel is a compact and efficient solution for managing two independent battery banks on boats, RVs, or off-grid systems. Featuring two high-quality Mini On/Off battery switches, this panel is designed to deliver reliable isolation and control of two 12V or 24V DC battery systems-such as house and engine banks.

Rated for continuous currents up to 100 amps per circuit, the 8080 panel supports heavy-duty loads while minimizing voltage drop. It’s built with marine-grade materials for durability in harsh environments and designed for surface or flush mount installation. Whether you’re switching between battery banks, isolating systems for safety, or shutting down power for maintenance, this panel offers an organized, easy-to-use interface.

Key Features:

• Dual Battery Control: Manage and isolate two separate battery banks with independent On/Off switches.

• Includes 2 Mini Battery Switches: Factory-installed Blue Sea 6006 Mini On/Off battery switches.

• 100A Continuous Rating: Handles high current demands reliably.

• Safe & Reliable: Allows complete isolation of battery banks to prevent drain and ensure safety during maintenance or emergencies.

• Compact Design: Fits easily in tight spaces; ideal for smaller boats or RVs.

• Marine-Grade Durability: Corrosion-resistant materials designed for wet and salty environments.

• Simple Installation: Pre-wired and ready to install; supports both surface and flush mounting.

Specifications:

• Manufacturer: Blue Sea Systems

• Model Number: 8080

• Panel Type: Dual Battery Switch Panel

• Switches Included: 2 x Mini On/Off Battery Switches (Model 6006)

• Circuit Capacity: 100A Continuous per circuit

• Maximum Voltage: 32V DC

• Intermittent Rating: 600A (5 minutes)

• Cranking Rating: 275A for 30 seconds

• Cable Size Compatibility: Up to 1/0 AWG

• Panel Material: Thermoplastic with corrosion-resistant hardware

• Mounting: Surface or flush mount

• Dimensions:

  • Panel Height: 5.25 in (133 mm)

  • Panel Width: 4.38 in (111 mm)

  • Panel Depth: 3.25 in (83 mm)

• Weight: Approx. 1.5 lbs (680 g)

• Ingress Protection: IP66 (water-resistant when properly mounted)

• Certifications: Meets ABYC & USCG standards for marine use

Applications:

• Isolating and managing house and start batteries on boats or RVs

• Enabling maintenance mode by disconnecting batteries from onboard systems

• Preventing battery drain while docked or stored

• Simplified, centralized battery control in compact installations

The Blue Sea Systems 8080 Dual Battery Panel is a compact, professional-grade solution for battery control, combining safety, durability, and simplicity for multi-bank DC power systems.
