ANCOR Yellow 6 AWG Tinned Copper Battery Cable – 100 ft – 112910

Description

ANCOR Yellow 6 AWG Tinned Copper Battery Cable – 100 ft – 112910

The ANCOR Yellow 6 AWG Tinned Copper Battery Cable – 100 ft – 112910 is marine-grade battery cable for high-current DC wiring on boats, RVs, service vehicles, and similar demanding installations. Fine-stranded tinned copper conductors improve flexibility and corrosion resistance, while heavy-duty 600V insulation helps protect the cable from heat, oil, fuel, abrasion, salt water, and vibration.

• 6 AWG yellow battery cable for marine DC power, battery banks, chargers, inverters, and distribution runs
• Tinned copper stranding helps resist corrosion and electrolysis in damp and saltwater environments
• Ultra-flexible Type 3 style stranding makes the cable easier to route through tight onboard spaces
• Heavy-duty insulation is rated for 600V and 105°C dry service for demanding marine applications
• Built to exceed common marine wire standards including UL 1426, ABYC, and USCG charter-boat requirements

Select cable size using the equipment manufacturer’s amperage requirement, circuit length, acceptable voltage drop, and the correct over-current protection for the installation.

What’s in the Box

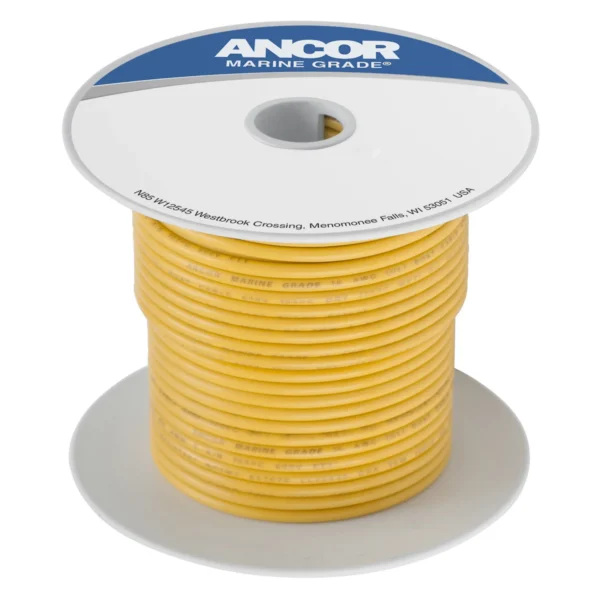

• 1 x ANCOR yellow 6 AWG battery cable, 100 ft

Specifications

• Manufacturer: ANCOR
• Part Number: 112910
• Cable Type: Marine grade tinned copper battery cable
• Gauge: 6 AWG
• Colour: Yellow
• Length: 100′ / 30.48 m
• Conductor: Fine-stranded tinned copper
• Insulation Rating: 600V, 105°C dry
• Standards: UL 1426 / ABYC / USCG marine electrical applications
