Description

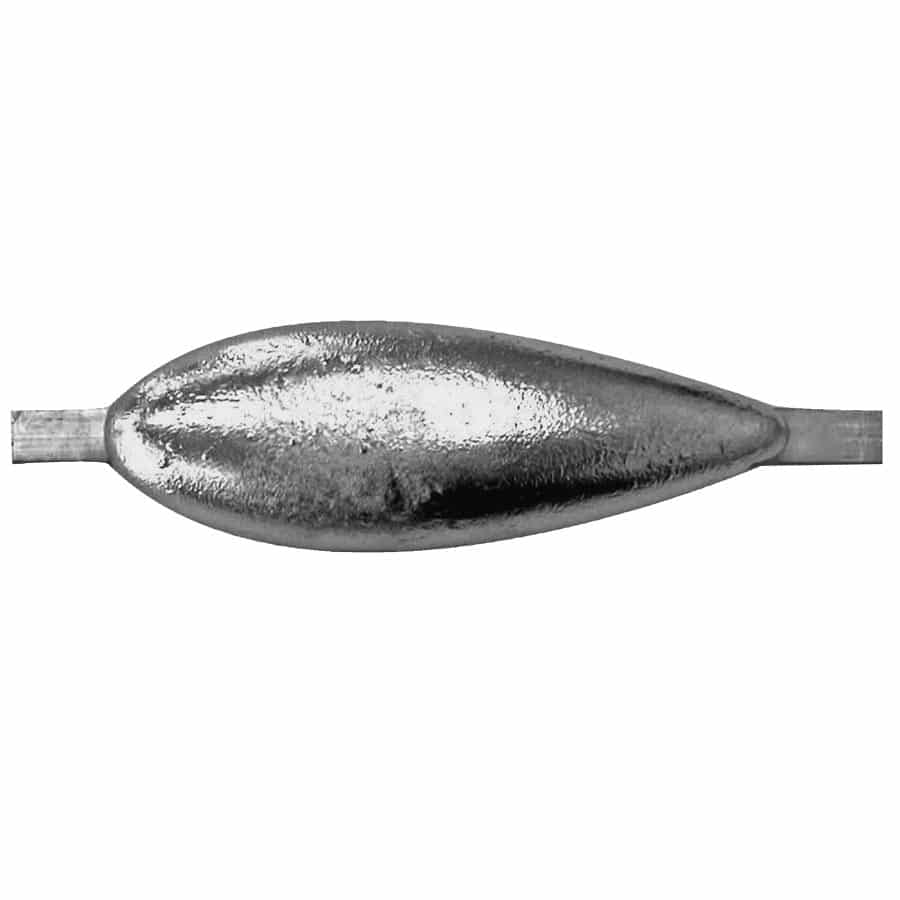

MARTYR Zinc Teardrop Anode (Aluminum-Strap) 9″ x 3″ – CMZTSAZ.
Bolt holes can be added on straps as required
Notes:
- All weights are nominal gross weight.
- Inserts and straps are available in either Aluminum or steel.
- Bolt size is suggested.
- Contact us for special configuration requirements.
- Detailed drawings are available. Protective backing available for better performance. Please check for details when ordering.
PID (Weld-on) | PID (Bolt-on) | LB | KG |
| L | W | H | |
Al | CMZTSA | – | 2.20 | 0.998 | mm | 229 | 73.025 | 38 |
Zn | CMZTSZ | CMZTSZSP | 5.10 | 2.313 | ||||
Al | CMZTSAA | – | 2.00 | 0.907 | ||||
Zn | CMZTSAZ | – | 4.90 | 2.222 | in | 9 | 2.875 | 1.5 |
Al | CMZTSGA | – | 2.20 | 0.998 | ||||
Zn | CMZTSGZ | – | 5.10 | 2.313 | ||||
