Description

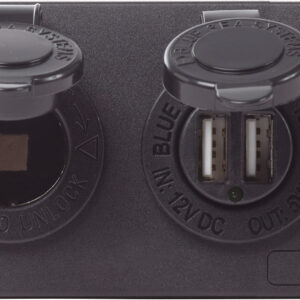

Blue Sea Systems 12/24V Dual USB 4.8A Chargers – Switch Mount – 1039
Intelligent device recognition allows rapid charging of phones, tablets, or other mobile devices.
- Provides charging at the precise speed required by individual devices
- Incorporates internal filtering to minimize electronic interference
- Features over-temperature protection for added safety
- Equipped with a protective dust cap to safeguard against debris and moisture intrusion
- The circuit board is conformal coated to withstand the challenging marine environment
Use the published electrical ratings and mounting dimensions to confirm compatibility with the vessel’s DC system, panel opening, wiring, and protection scheme.
Specifications
- Maximum Output Current: 4.8A DC (total)
- Input Voltage: 12V DC / 24V DC
- Output Voltage: 5V DC ±5%
- Cut Out Dimensions: 1.45 in (36.83 mm) H 0.83 in (21.08 mm) W
- Input Voltage Range: 9-32V DC
- Parasitic Current Draw: 1mA
- Port Configuration: Intelligent Device Recognition
- Reverse Polarity Protection: Yes
- Short Circuit Protection: Yes
- Thermal Overload Protection: Yes
- Weight: 0.10 lb (0.05 kg)
- Manufacturer: Blue Sea Systems
- Part Number: 1039
