Description

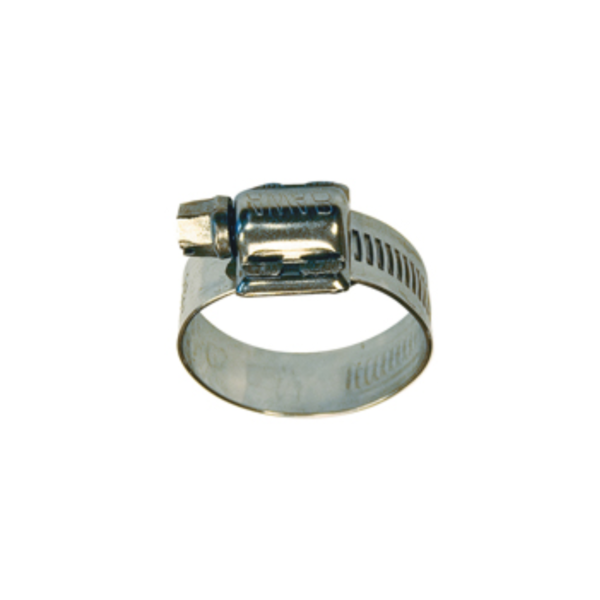

ABA Mini Stainless Steel Hose Clamps are compact, high-quality clamps engineered specifically for small-diameter, thin-walled hose. Manufactured from 304 stainless steel, these clamps provide excellent corrosion resistance and dependable clamping force for marine, automotive, fuel, hydraulic, plumbing and general industrial applications.
- All 304 stainless steel construction for excellent corrosion resistance in marine and other demanding environments.
- Rounded, rolled band edges help protect soft and thin-walled hose from cutting, pinching or abrasion.
- Reinforced band tongue is specially formed for added strength and helps maintain even pressure around the hose.
- Retained nut design keeps the nut securely positioned even when the screw is completely removed, simplifying installation in tight spaces.
- 7mm hex / cross-slot screw head allows installation using a socket driver or screwdriver.
Unlike many miniature screw clamps, the ABA Mini is designed to provide substantial and consistent clamping force while remaining gentle on the hose. Its compact 9mm-wide band makes it particularly well suited to fuel lines, small water hoses, hydraulic lines, instrumentation tubing and other applications where conventional hose clamps are too large.
ABA Mini clamps are supplied in individual nominal sizes from 8mm through 17mm. Each size has a relatively narrow adjustment range, allowing the correct clamp to closely match the hose outside diameter for secure, even compression.
Specifications
- Brand: ABA
- Series: ABA Mini S40 / W4
- Material: 304 / 18-8 Stainless Steel
- Band Width: 9mm (approximately 3/8″)
- Band Thickness: 0.5mm
- Screw Drive: Cross-slot with 7mm external hex
- Application: Small-diameter and thin-walled hose
- Available Nominal Sizes: 8mm through 17mm
- Country of Origin: Sweden
Available Sizes
- 22008 – Size 8: 7.5–8.5mm (19/64″–21/64″)
- 22009 – Size 9: 8.5–9.5mm (21/64″–3/8″)
- 22010 – Size 10: 9.5–11mm (3/8″–7/16″)
- 22011 – Size 11: 10.5–12mm (13/32″–15/32″)
- 22012 – Size 12: 11.5–13mm (29/64″–33/64″)
- 22013 – Size 13: 12.5–14mm (1/2″–35/64″)
- 22014 – Size 14: 13.5–15mm (17/32″–19/32″)
- 22015 – Size 15: 14.5–16mm (37/64″–5/8″)
- 22016 – Size 16: 15–17mm (19/32″–43/64″)
- 22017 – Size 17: 16–18mm (5/8″–45/64″)
Note: The 8mm through 17mm designations are nominal clamp sizes rather than the total adjustment range of a single clamp. Select the size whose clamping range matches the outside diameter of the installed hose.
